New Generation

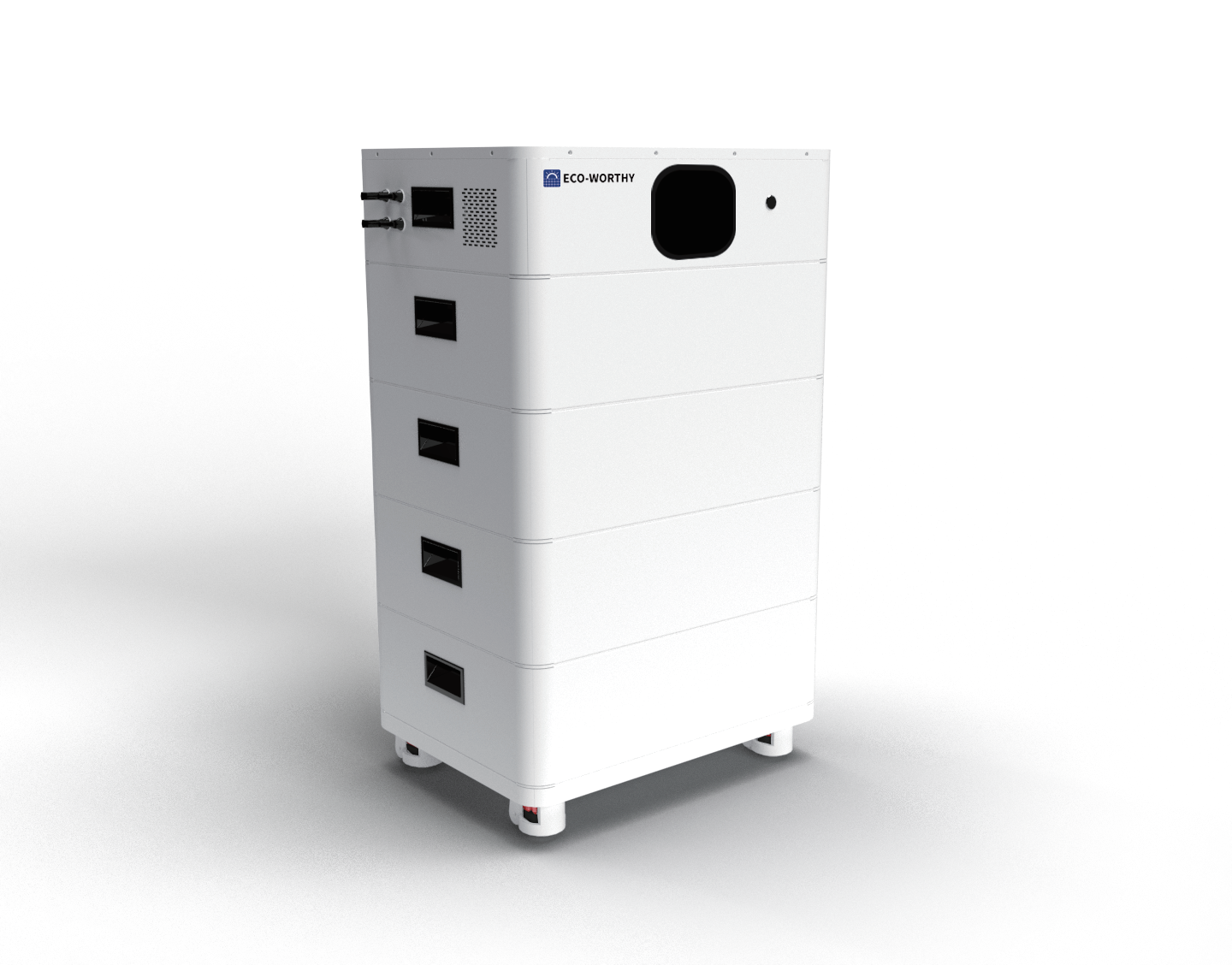

51.2V 1-8 units

Redefining Home Energy. Extended Endurance, Smart Connectivity.

Product Information

BMS ProtectionOvercharge/Over-discharge Protection, Charge/Discharge Over-current Protection, Short-circuit Protection, Battery Voltage Self-balancing, High-temperature Discharge Cut-off.
High Capacity and LightweightThe integrated inverter and controller design, along with the mobility and ease of installation, makes it an ideal choice for indoor power supply.
Wide Range of ApplicationsIt is suitable for off-grid systems and household appliances.
Long LifespanCan be cycled up to 6000 times.
Easy InstallationThe all-in-one stackable design eliminates the need to purchase a separate inverter.
Capacity ExpansionIt is recommended to parallel up to 8 battery modules, achieving a capacity of 40.96kWh.
Smart ControlECO-WORTHY APP.

Parameters

Max. Number of Units in Parallel 1~8 units
Nominal Voltage 51.2V
Energy 5.12~40.96kWh
Max. Stackable Energy 40.96kWh
Battery Module Dimension 600 x 450 x 445mm (1 inventer plus 1 module)
Inverter Output
Rated Output Power 5000W
Rated Output Voltage 230Vac(L/N/PE Single Phase)
Allowable parallel number 1~6 single phase or three phases
Number of MPPT Channels 1
Max.Input Power 5500W
Max.Input Current 22A
Max.Open-Circuit Voltage 550Vdc
MPPT Operating Voltage Range 120~450Vdc
Input Voltage Range 90~280Vac
Bypass Overload Current 40A
MPPT Tracking Efficiency 99.9%
Battery Inverter Maximum Efficiency 92%
IP Rating IP20(Use indoors)
Environment Temperature -10~55°C
Noise ≤60dB
Cool Forced cooling, adjustable wind speed
Communication
Internal Interface RS485/USB/Dry Contact
Battery(1 module)
Battery Type LFP
Nominal Battery Voltage 51.2Vdc
Voltage Range 43.2~58.4Vdc
Max.Photovoltaic Charging Current 100A
Max.Mains/Generator Charging Current 60A
Max.Hybrid Charging Current 100A
Battery Module Weight 50kg (1 module)
Certification
Safety Compliance CE(ICE62109-1/2)
EMC EN61000
RoHS Included
